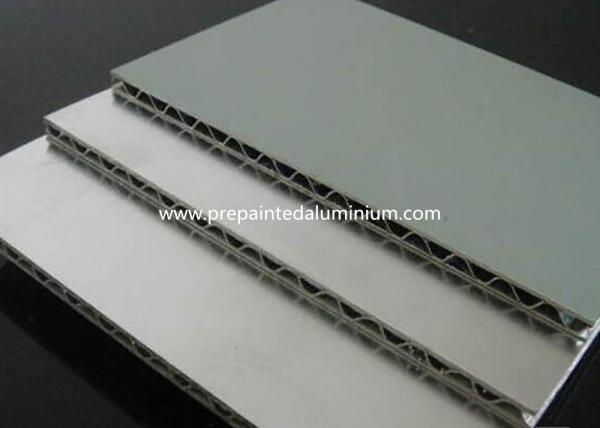

    Welded Honeycomb 3.8mm 2.6M Aluminium Composite Board

    Ask Lasest Price
    Brand Name : Dingang
    Model Number : Dingang - PPAL
    Certification : SGS,ITS,BV
    Price : Negotiable
    Payment Terms : T/T,L/C
    Supply Ability : 5000 Tons / Per Month
    Delivery Time : Within 35 Days After Order Confirmed And Down Paymetn Received
    • Product Details
    • Company Profile

    Welded Honeycomb 3.8mm 2.6M Aluminium Composite Board

    Welded honeycomb composite aluminum board used in new energy vehicle, furniture cabinet,ship


    Product Detail:

    DescriptionTest standardPVDF
    Thickness of coatingPVDF paint>=25um28um to 32um
    Coating flexibility (T-bend)PVDF paint≥2T3T
    Color differentΔE<=2.0(follow color sample)ΔE<2.0
    Pencil hardness>=HB>=HB
    Chemical resistance5%HCI or 5% NaOH test in 24 hours -No change;ASTM D1308No change
    Coating adhesion>=1grade for 10*10mm2 gridding test1grade
    Resist solventNo change for 200 times(MEK)No change
    Boiling water resistanceCoating no tear off for 2 hoursNo TEAR OFF
    Peeling strength/stripping strengthAverage >=7N/mm of 180oc peel off for panel with 0.5mm alu.skin7N/mm
    Impact test for paint50KG.cm impact-paint no split for panelNo split
    Abrasion resistance (L/Mil)ASTM D96844
    Temperature resistance-40ºC to +80ºC temperature without change of color difference and paint peel off,peeling strength average dropprate <=10%Change of glossy only,no paint
    Peel off
    Coefficient of linear Thermal Expansion100ºC temperature difference2.4mm/m
    Detergent resistance (3%)ASTM D2248No change
    Humidity Resistance (3000hrs,100%RH,100°F)ASTM D2247No change
    Salt spray resistance (3000hrs,5% salt)ASTM B117No change
    Resistance to Staining4000h radiate in 800W/m2 in humidity condition,glossiness deviation less grade 2,color difference <=4.0No change

    Test Certificate:



    Application:


    The Ship Furniture Cabinet


    The hull interior is an important part of the ship, and it is the residence and work of the crew. In the event of a fire in a traditional interior, the consequences are unimaginable and will cause huge losses to the crew ’s property and life safety. Therefore, the choice of decorative materials in the ship has important significance.


    New Energy Vehicle


    Application innovation:

    Welded honeycomb composite panel, which has the characteristics of "light weight", "high strength" and "fire prevention", has become the side wall panel of the new energy bus body, the roof of the body, the rear cover of the car, the battery compartment cover of the interior floor The ideal materials for car body parts such as panels and door panels provide a powerful guarantee for the new energy automobile industry.



    Matte beige color
