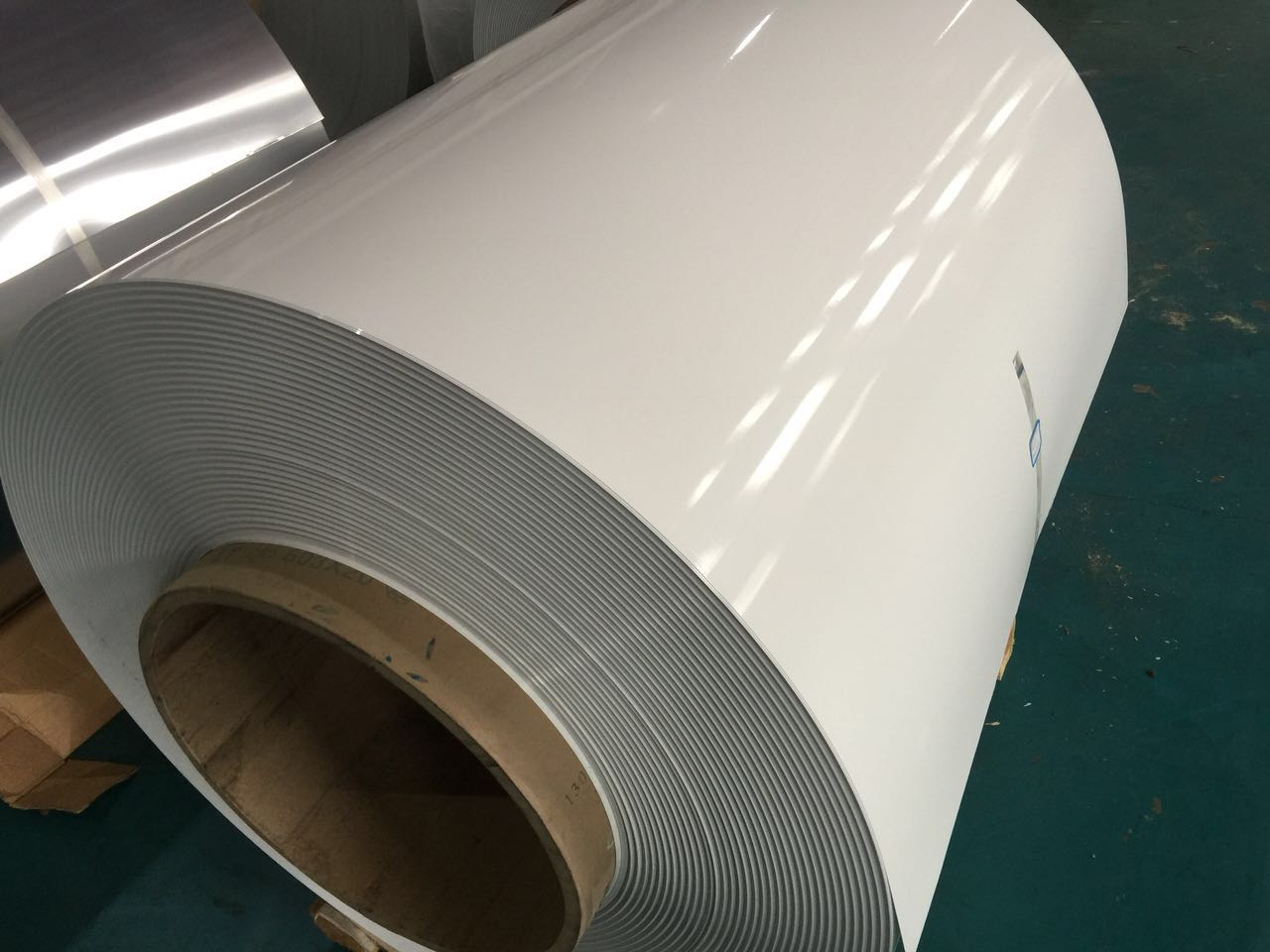

    High Gloss White Color Coated Aluminum 2600mm Width For Truck Body

    Ask Lasest Price
    Brand Name : Dingang
    Model Number : Dingang - PPAL
    Certification : SGS,ITS,BV
    Price : Negotiable
    Supply Ability : 5000 Tons / Per Month
    Delivery Time : Within 35 Days After Order Confirmed And Down Paymetn Received
    Payment Terms : T/T,L/C
    • Product Details
    • Company Profile

    High Gloss White Color Coated Aluminum 2600mm Width For Truck Body

    High Gloss White Color Coated Aluminum 2600mm Width Used For Truck Body Manufacturer


    Color coated aluminum (prepainted aluminum),which is produced with aluminum sheet or coil and processed by coating with color or pattern.
    In common sense, here are two kinds of coating PVDF and PE.Compared with other section steel prepainted aluminum coil is the more popular material, because of its excellent property. Firstly the property is very stable so the surface is erosion resistant, warranty could up to 30 years long after special treatment. Then,the density is the lowest among metal material when volume is fixed.




    Specifications of prepainted aluminium coil :

    AlloyAA 3105 Or AA 5052
    TemperH24(All According Customers' Requirement)
    StandardASTM, ASME, AISI, JIS, DIN, EN, ISO, GB And Etc
    Thickness0.80mm -2.00mm
    Width1800-2650mm
    Thickness Paint LayerPE Paint with more than 23 micron
    Interior Diameter505mm
    ColorRal Color Code Or As Per Clients Requirements And Actual Sample
    Coating HardnessMore Than 2H(pencil hardness)
    Impact ResistanceNo Cracking And Peeling (50kg/cm,ASTMD-2794:1993)
    Flexibility (T-bend)No More Than 2T
    MEK ResistanceMore Than 100



    Paint Performance:

    Test ItemPaint
    PVDFPE And Others
    With VarnishWithout Varnish
    Paint Film Thickness, μ≥22≥30≥18
    Shine ToleranceShine≥80 Unit, ±10 Unit Allowed
    Shine≥20-80 Unit, ±7 Unit Allowed
    Shine<20 Unit, ±5 Unit Allowed
    Pencil Hardness≥1H
    Abrasion Resistance, L/μm≥5--
    T-bend≤2T≤3T
    Impact Strength50KG.CM Without Depainting And Crack
    Adhesive Force (Class)≥1
    Boiling Water ResistanceUnvarying
    Chemical ResistanceAcid EnduranceUnvarying
    Alkali StabilityUnvarying
    Oil ResistivityUnvarying
    Resistance To Solvent≥70≥50
    Scrub Resistance≥10000 Times Unvarying
    Dirt Resistance≤15%--
    Salt Spray Resistance(class)≥ 2 class

    --


    Appliance of super wide prepainted aluminium coil :
    Super wide color coated aluminum coil is widely used in the manufactuer of truck body manufacturing.

    We can produce the material which the width is on the range of 1800-2500mm.
