    Embossed aluminum coil 1000 & 3000 Series used in Construction & Transporation

    Ask Lasest Price
    Brand Name : Dingang
    Model Number : Embossed aluminum sheet
    Certification : SGS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 15 Working days
    Supply Ability : 300000 tons Per Month
    • Product Details
    • Company Profile

    Embossed aluminum coil 1000 & 3000 Series used in Construction & Transporation

    Embossed aluminum coil 1000 & 3000 Series used in Construction & Transporation


    ALUMINUM EMBOSSED COIL SPECIFICATION


    Aluminum Embossed Coil is a sheet of aluminum that has undergone a specialized manufacturing process where patterns or designs are embossed onto its surface. This process enhances the aesthetic appeal and texture of the aluminum sheet while also providing functional benefits such as improved grip and durability.


    PRODUCT SPECIFICATION AND SIZE


    Standard Specification: Base material conforms to GB/T 3880, ASTM B209, or EN 485.


    Alloy and Temper
    AlloyTemper
    1xxx: 1050, 1050A, 1060, 1100O, H12, H14, H22, H24
    3xxx: 3003

    Alloy Designation


    Comparison of Alloy Designations for Aluminum Products


    Alloy SeriesChinese StandardAmerican StandardEuropean Standard
    1xxx Series1050--
    1050A-EN AW-1050A
    10601060-
    11001100-
    3xxx Series30033003EN AW-3003

    Temper Designation (For Reference)


    TemperDefinition
    OAnnealed
    H12
    H14
    Strain Hardened, 1/4 Hard
    Strain Hardened, 1/2 Hard
    H22
    H24
    Strain Hardened and Partially Annealed, 1/4 Hard
    Strain Hardened and Partially Annealed, 1/2 Hard

    Available Size Range


    DimensionThicknessWidthLength
    Range0.3 ~ 1.5mm1,000 ~ 1,250mmCoiled, or 2,000 ~ 4,000mm

    It is usually supplied in coil with trimmed edge. In very few cases, it also can be cut to length when the thickness is over 0.5mm and the length is not exceeding 4000mm.



    Surface Finish

    Stucco Embossed as per agreed pattern (mill finish), and sometimes painted in color.


    Surface Protection

    Without paper interleaved


    Coil ID

    505mm


    Minimum Order Quantity

    5MT per size, total 20MT for one order


    The embossed pattern shall be usually confirmed by customer when placing order.


    Chemical Composition (For Reference)


    Chemical Composition conforms to Chinese, American and European standard specification

    AlloySiFeCuMnMgCrZnTiOthers:
    Each
    Others:
    Total
    Al: Min.
    10500.250.400.050.050.05-0.050.030.03-99.50
    10600.250.350.050.030.03-0.050.030.03-99.60
    11000.95 Si + Fe0.05~0.200.05--0.10-0.050.1599.0
    30030.600.700.05~0.201.0~1.5--0.10

    APPLICATION OF ALUMINUM EMBOSSED COIL


    TypeApplication
    ConstructionCurtain walls, cladding, ceiling, heat insulation, venetian blind block, etc.
    TransportationAutomobile parts, bus bodies, aviation, shipping and air-cargo containers, etc.
    Electronic ApplianceElectrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc.
    Consumer GoodsParasols and umbrellas, cooking utensils, sports equipment, etc.
    OtherMilitary usage, color coated aluminum sheet

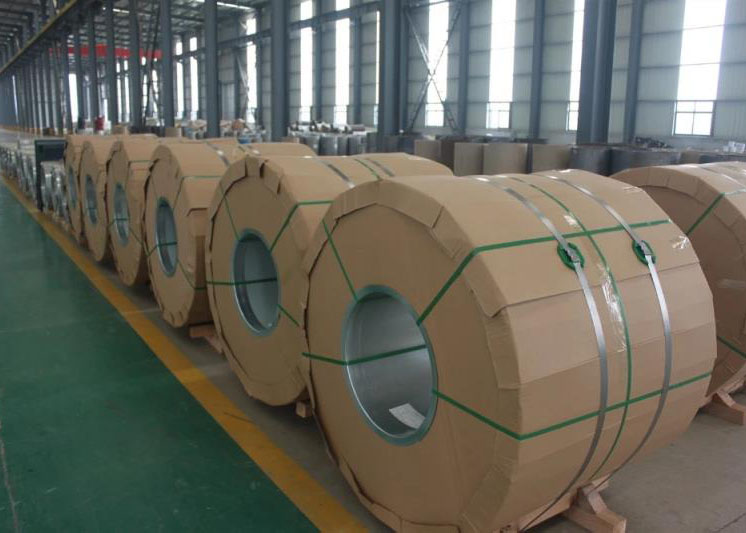

    ALUMINUM EMBOSSED COIL WAREHOUSE



    FAQ


    Why choose Aluminum Embossed Coil over plain aluminum sheets?

    Aluminum Embossed Coils offer several advantages over plain aluminum sheets. They provide enhanced slip resistance, making them ideal for flooring and transportation applications. The embossed patterns also add a decorative element, making them suitable for architectural and interior design purposes.


    What types of embossed patterns are available for Aluminum Coils?

    Aluminum Embossed Coils come in a wide range of embossed patterns, including stucco, diamond, pebble, and orange peel patterns. Each pattern offers distinct visual appeal and functional characteristics, allowing for versatility in design and application.


    Can Aluminum Embossed Coils be customized?


    Yes, Aluminum Embossed Coils can be customized to meet specific requirements. Customization options include choosing the embossed pattern, thickness, width, and alloy composition to suit the intended application. Custom color coatings are also available to enhance aesthetics.


    Are Aluminum Embossed Coils corrosion-resistant?


    Aluminum is naturally corrosion-resistant, and the embossing process does not compromise this property. In fact, the embossed patterns can enhance the aluminum's resistance to wear and corrosion, making it a durable choice for various outdoor and marine applications.


    How is the thickness of Aluminum Embossed Coils measured?

    The thickness of Aluminum Embossed Coils is typically measured in millimeters (mm) or gauge, with the most common thicknesses ranging from 0.5mm to 3.0mm. The gauge measurement is often used in North America, while the millimeter measurement is more prevalent in other regions.


    What are the benefits of using Aluminum Embossed Coils in the construction industry?


    In the construction industry, Aluminum Embossed Coils are valued for their lightweight nature, corrosion resistance, and aesthetic appeal. They are commonly used for roofing, cladding, and decorative applications due to their ability to withstand harsh weather conditions while enhancing the building's visual appeal.


    How can I maintain the appearance of Aluminum Embossed Coils?

    To maintain the appearance of Aluminum Embossed Coils, it's advisable to clean them regularly with mild detergent and water. Avoid abrasive cleaners or materials that could scratch the embossed surface. Additionally, applying a protective coating can help prolong their lifespan and preserve their appearance.


    Are Aluminum Embossed Coils environmentally friendly?

    Yes, Aluminum Embossed Coils are environmentally friendly. Aluminum is a highly recyclable material, and the embossing process does not introduce harmful chemicals or byproducts. Choosing aluminum over other materials can contribute to sustainability efforts and reduce the environmental footprint of projects.
